The extractive industries in the UK comprise oil and gas production, mining and quarrying. These sectors play a major role in the UK economy, contributing a total of £14 billion Gross Value Added in 2020 and employing 60,000 people directly, with many more supported in the industries’ wider supply chains.
The extractive industries comprise mining and quarrying, including oil and gas production.
The sector has made a sizeable contribution to the UK economy for many years and remains an important sector, both directly and by supporting substantial added value in downstream industries and related supply chains. By far the largest economic contribution comes from oil and gas production.
In 2020, total UK extractive industry gross value added (GVA) is now estimated to have been £14 billion, with oil and gas production and associated support service activities accounting for 85% of the sector’s GVA . The oil and gas industry was directly responsible for approaching 40,000 jobs in 2020, with many more supported in the industry’s wider supply chain. It is estimated that in total 260,000 jobs across the UK were supported by the offshore oil and gas industry in 2018.
Construction minerals, principally crushed rock and sand and gravel aggregates, represent the largest materials flow in the UK. The market for these minerals depends upon the level of UK construction activity and longer-term construction-related demand.
Although payments made by coal mining companies are no longer considered material relative to overall government revenues and to UK EITI reporting the continuing economic contribution of the coal sector is still included in the background information set out below.
In some of the summary information below, coal is grouped with oil and gas (for example where data are available for fossil fuels but not for other parts of the sector). However, for most of this chapter, oil and gas are treated separately from mining and quarrying, including coal. In addition, it should be noted that the phrase “mining and quarrying” as used in UK national statistics embraces the whole UK extractive sector including oil and gas production as well as coal production. Mining support services are also included in this sector. Some of the data reported below include those activities while other data exclude them.

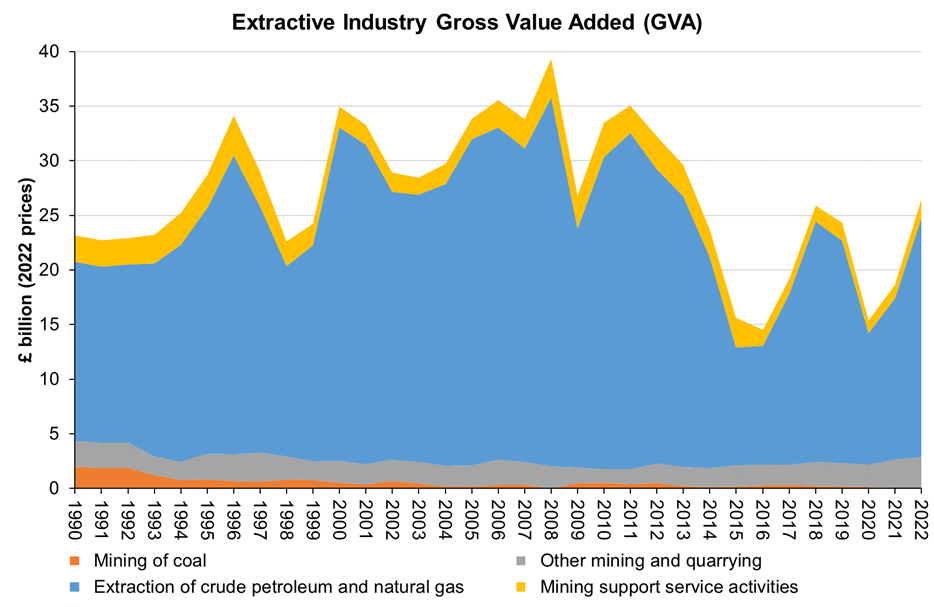

Figure 1. Extractive Industry Gross Value Added (GVA)
Source: ONS, UK GDP(O) low level aggregates, 12 May 2021
The underlying data presented in Figure 1 above are available on request from the UK EITI Secretariat.
Table 1 shows GVA for the main components of the mining and quarrying sector as reported in UK national statistics.
As noted above, this sector includes fossil fuel production, other mining and quarrying and mining support service activities, but excludes the value of products manufactured with extracted minerals. The table gives for each subsector its percentage share of total UK GVA for the most recent year. It also shows the whole sector’s GVA as a percentage of national gross domestic product (GDP) for each year .
|Year||Extraction of crude petroleum and natural gas||Mining of coal||Other mining and quarrying||Mining support service activities||Total mining and quarrying including oil and gas||Total UK GVA||Total UK GDP||Extractives share of total GDP|
|(A)||(B)||(C)||(D)||(E) = sum of (A)–(D)||(F)||(G)||(E) / (G)|
* The percentages in this row are shares of total UK GVA for all industries in 2020.
Source: ONS, UK GDP(O) low level aggregates, published 12 May 2021, ONS, GDP at current prices – real-time database (YBHA), published 12 May 2021
The underlying data presented in Table 1 above are available on request from the UK EITI Secretariat.
The following tables give a finer breakdown of the sector in the latest recent year for which data are available to give a sense of the scale of activity in each subsector. Although the GVA data in the first table and the one above are sourced from official Office of National Statistics (ONS) data, they are not identical. Note that in value terms support service activities are almost entirely related to extraction of petroleum and natural gas.
|SIC 07 Code||Description||Number of enterprises||Approximate gross value added at basic prices (aGVA)||Total employment costs|
|Number||£ million||£ million|
|06||Extraction of crude petroleum and natural gas||155||15,522||1,914|
|09.1||Support activities for petroleum and natural gas extraction||226||2,739||1,784|
|08.11||Quarrying of ornamental and building stone, limestone, gypsum, chalk and slate||217||1,024||472|
|08.12||Operation of gravel and sand pits; mining of clays and kaolin||159||852||344|
|08.92||Extraction of peat||15||71||24|
|08.93||Extraction of salt||8||84||31|
|09.9||Support activities for other mining and quarrying||191||35||24|
|B||Mining and quarrying||1,297||20,477||4,731|
Source: Annual Business Survey, 24 June 2021
The sum of constituent items in tables may not always agree exactly with the totals shown due to rounding.
Note: Total employment - point in time and Total employment - average during the year are from the Business Register and Employment Survey (BRES).
Caution should be taken when combining financial data from the ABS with employment data from BRES due to differences in methodology.
The underlying data presented in Table 2 above are available on request from the UK EITI Secretariat.
More information can be found in the ABS Technical Report.
|Businesses number||Employment thousands||Turnover|
|05 Mining of coal and lignite||15||*||*|
|06 Extraction of crude petroleum and natural gas||150||13||19,924|
|07 Mining of metal ores||5||*||*|
|08 Other mining and quarrying||1,235||21||6,718|
|09 Mining support service activities||6,980||27||6,375|
|B Mining and Quarrying including Oil and Gas||8,385||61||33,017|
|05 Mining of coal and lignite||15||*||*|
|06 Extraction of crude petroleum and natural gas||95||13||19,863|
|07 Mining of metal ores||0||*||*|
|081 Quarrying of stone, sand and clay||320||18||6,097|
|089 Mining and quarrying n.e.c.||185||2||541|
|08 Other mining and quarrying||505||21||6,639|
|091 Support activities for petroleum and natural gas extraction||160||18||5,754|
|099 Support activities for other mining and quarrying||75||1||104|
|09 Mining support service activities||230||19||5,858|
|B Mining and Quarrying including Oil and Gas||845||53||32,360|
1. n.e.c. = not elsewhere classified; industrial classification follows UK SIC 2007
2. A * symbol replaces data that are deemed to be disclosive.
Source: Business Population Estimates 2019, BEIS, 8 October 2020, Tables 6 & 7
The underlying data presented in Table 3 above are available on request from the UK EITI Secretariat.
UK government accounts cover a financial year running from April to March rather than a calendar year, so most of the data on government revenues are of necessity on a financial year basis.
Where possible, calendar year data have (also) been provided. Oil and gas companies have a distinct tax regime, allowing identification of their extractive-related tax payments (and repayments), whereas mining and quarrying companies pay mainstream corporation tax. This means the data for extractive-related tax receipts from mining and quarrying companies cannot be separated out. Details on tax revenues can therefore be found in the separate upstream oil and gas in the UK chapter.
Section 106 payments are made (in England, plus equivalent payments made elsewhere in the UK) to local authorities relating to the granting of planning permission for mining operations to cover, for example, local road and infrastructure improvements. These are the only mandated social expenditure by extractive companies.
There are no non-monetary arrangements between extractive companies and the government in the UK.
Forecasts of UK government oil and gas revenues are published by the independent Office for Budget Responsibility (OBR). The OBR also publishes details of its underlying forecasts of oil and gas production, prices and expenditure broken down between exploration and appraisal, development capital expenditure, operating costs and decommissioning costs.
Table 4 includes environmental taxes paid by the UK extractive industries. These are not extractive-related so are not included in the reconciliation of payments and receipts.
|Government revenue from energy taxes (incl. EU ETS)||248||227||165||176||208||nya||nya|
|Government revenue from transport taxes||48||55||51||49||39||nya||nya|
|Government revenue from pollution and resource taxes||345||357||408||378||370||nya||nya|
|of which Aggregates Levy||282||342||354||405||375||366||396|
|Total Government revenue from environmental taxes||602||641||640||624||602||nya||nya|
The EU ETS is the EU Emissions Trading System
The Aggregates Levy was introduced in 2002 and is a tax on sand, gravel or rock that has been dug from the ground, dredged from the sea or imported into the UK. It is generally payable by the quarrying industry but can also apply when aggregate is removed in the course of infrastructure projects. More information is given in the Aggregates Levy Bulletin
nya = not yet available
Source: Environmental taxes in the United Kingdom (ONS, 3 June 2021)
The underlying data presented in Table 4 above are available on request from the UK EITI Secretariat.
The UK both imports and exports all types of mining and quarrying production but is generally a net importer of each type. Information on trade flows is given in the relevant sectoral sections.
The ONS produce UK Trade Statistical Bulletins each month, as well as quarterly UK Trade in Goods by Classification of Product by Activity. Gross extractives exports in 2020 as reported by ONS in June 2021 amounted to 3.1% of total UK gross exports by value.
Table 5 gives estimates of the total UK workforce jobs directly supported by the UK mining and quarrying sector including its major sub-sectors. It also shows the industries are typically capital- rather than labour-intensive and correspondingly represent a significantly smaller share of workforce jobs than of GVA. All extractive employment shown in this and subsequent tables is in the private sector.
|Year||Production of oil and gas||Mining of coal||Mining of metal ores and other mining and quarrying||Mining support service activities*||Total extractive industries||All UK Industries|
* Almost all of this is in support of oil and gas production
The underlying data presented in Table 5 above are available on request from the UK EITI Secretariat.
Table 6 shows estimates of extractive industry employment in Great Britain (the UK excluding Northern Ireland) at a finer level of disaggregation than is available for the workforce jobs estimates for the UK.
|GB||05101||Deep coal mines||0.9||*||-||0.1||0.1|
|GB||05102||Open cast coal working||1.1||*||1.2||1.2||1.3|
|GB||05||Mining of coal (1)||2.0||1.1||1.3||1.3||1.4|
|GB||06||Extraction of crude petroleum and natural gas (2)||15.7||15.2||12.2||12.8||13.3|
|GB||07||Mining of metal ores||-||-||-||-||-|
|GB||08110||Quarrying of ornamental and building stone; limestone; gypsum; chalk and slate||7.4||8.6||7.7||8.2||8.8|
|GB||08120||Operation of gravel and sand pits; mining of clays and kaolin||7.7||6.9||7.0||7.3||8.7|
|GB||081||Quarrying of stone; sand and clay||15.1||15.5||14.7||15.6||17.6|
|GB||08910||Mining of chemical and fertilizer minerals||1.3||*||*||*||*|
|GB||08920||Extraction and agglomeration of peat||0.2||*||*||*||^|
|GB||08930||Extraction of salt||0.4||0.3||0.3||0.4||0.4|
|GB||08990||Other mining and quarrying n.e.c.||1.3||1.2||0.9||1.0||1.6|
|GB||089||Mining and quarrying n.e.c.||3.2||2.4||2.0||1.9||2.6|
|GB||08||Other mining and quarrying (other than mining of metal ores)||18.3||17.9||16.7||17.5||20.2|
|GB||091||Support activities for petroleum and natural gas extraction (3)||22.4||18.8||18.4||18.1||17.1|
|GB||099||Support activities for other mining and quarrying||0.4||0.4||0.3||0.5||0.9|
|GB||09||Mining support service activities||22.9||19.2||18.7||18.6||18.1|
|GB||∑05–09||Total Extractive Industries||58.9||53.4||48.9||50.2||53.0|
|GB||(1) + (2)||Fossil Fuel Extraction||17.7||16.3||13.5||14.1||14.7|
|GB||(2) + (3)||Oil and Gas Extraction and Support Services||38.1||34.0||30.6||30.9||30.4|
|UK||05 & 06||Mining of coal and lignite; Extraction of crude petrol/gas||20||18||15||15||15|
|UK||07 & 08||Mining of metal ores; Other mining and quarrying||21||21||19||21||19|
|UK||09||Mining support service activities||30||24||24||27||25|
|UK||∑05–09||Total Extractive Industries||71||62||58||62||59|
Notes: (1) Data for 2015 comes from the provisional rather than revised results. (2) n.e.c. = not elsewhere classified
- Employment is defined as employees plus working proprietors.
- Figures are rounded to the nearest thousand and to one decimal place. For example, 2.4 is equal to 2,400 and represents a figures in the range 2,350-2,449. Figures may not add up due to rounding.
- Cells containing an asterisk (*) represent disclosive data that cannot be published.
- Cells containing a hyphen (-) represent a zero or less than 50.
Source: ONS, Business Register and Employment Survey (Table 2a)
The underlying data presented in Table 6 above are available on request from the UK EITI Secretariat.
Table 7 shows the proportion of females in the workforce in recent years in the extractive sector and the economy as a whole. Shares in 1996, the first year for which comparable data exist, are also shown. The longer-term trend in female representation in the extractive sector is clear.
oil and gas production
|Mining of metal ores|
and other mining and quarrying
|Total extractive industries||All UK Industries|
Source: ONS (September 2021)
The underlying data presented in Table 7 above are available on request from the UK EITI Secretariat.
Extractive industry employment levels have fallen markedly from their historic peak decades ago, mainly due to the decline of the coal industry, but extractive-related activities still contribute significantly to local employment in a number of regions.
The broad geographic spread of employment in the UK extractive sector (including oil and gas and mining support service activities) is illustrated in Table 8. The concentration of employment in Scotland reflects the dominance of the Aberdeen area in terms of oil and gas-related activity. While the importance of the sector for the Scottish economy is well known, the relatively high share of activity in the East Midlands is also noteworthy.
Almost all extractives employment is full-time. In 2019, full-time employees engaged in oil & gas extraction and support activities represented 15% of all full-time employees in Aberdeen City and 8% in the surrounding area of Aberdeenshire. Other mining & quarrying was much less concentrated with a maximum share in any principal local authority area of only 3% of full-time employees in Rutland and 2% in Redcar and Cleveland.
|Extraction of crude petroleum and natural gas||Support activities for petroleum and natural gas extraction||Extraction of petroleum and natural gas||Mining of hard coal from deep coal mines (underground mining)||Mining of hard coal from open cast coal working (surface mining)||Mining of hard coal||Quarrying of ornamental and building stone, limestone, gypsum, chalk and slate||Operation of gravel and sand pits; mining of clays and kaolin||Mining of chemical and fertiliser minerals|
|Yorkshire and The Humber||250||125||375||0||0||0||500||600||0|
|Great Britain (GB)||13,465||16,795||30,260||110||1,280||1,390||8,995||8,825||560|
|Sector share of GB Total||0.04%||0.05%||0.10%||0.00%||0.00%||0.00%||0.03%||0.03%||0.00%|
|Extraction of peat||Extraction of salt||Other mining and quarrying n.e.c.||Support activities for other mining and quarrying||Other mining and quarrying||Mining and quarrying including oil and gas||Region total all industries||Sector share of region total|
|Yorkshire and The Humber||0||0||125||25||1,250||1,625||2,490,000||0.07%|
|Great Britain (GB)||105||370||1,595||950||22,790||53,050||31,087,750||0.17%|
|Sector share of GB Total||0.00%||0.00%||0.01%||0.00%||0.07%||0.17%||100.00%|
ONS Crown Copyright Reserved (from Nomis on 9 November 2020). The level of rounding applied varies by estimate. Please see this article for further information on how rounding of Business Register and Employment Survey estimates is applied.
The underlying data presented in Table 8 above are available on request from the UK EITI Secretariat.
Almost all UK oil and gas production comes from fields located offshore. The Oil and Gas Authority (OGA) publishes maps showing the location of oil and gas fields in GB and on the UK Continental Shelf (UKCS) and on the UK Continental Shelf (UKCS) are published online by the Oil and Gas Authority (OGA). These maps also show which areas are under licence offshore and onshore in Great Britain. The Northern Ireland Department for the Economy (DfE) publishes a map showing which areas are under licence in Northern Ireland, but there is as yet no production there.
The majority of coal production comes from sites in Scotland, England and South Wales, as mapped by the Coal Authority and . The mining and quarrying of non-hydrocarbon minerals are widely distributed across the UK. There are no significant hard-rock aggregate deposits in the South and East of England, so these materials are transported for use in these regions from further afield in the Midlands and South West in particular.
Marine Scotland curates data about onshore hydrocarbon production in Scotland also has interactive maps with data taken from the Coal Authority and other sources.
UK production of fossil fuels has been, and continues to be, significant in terms of meeting UK energy demand. This is particularly true of oil and gas but, nowadays, much less so for coal.
While fossil fuels’ share of total demand has been declining, they still account for around four fifths of total primary energy demand and, based on current policies, latest BEIS projections suggest they will still account for some 70% of total primary energy demand even in 2035.
Figures 2 and 3 show the evolution of UK energy demand and production since 2000. The recent decline in coal use and growth in renewables are shown clearly.

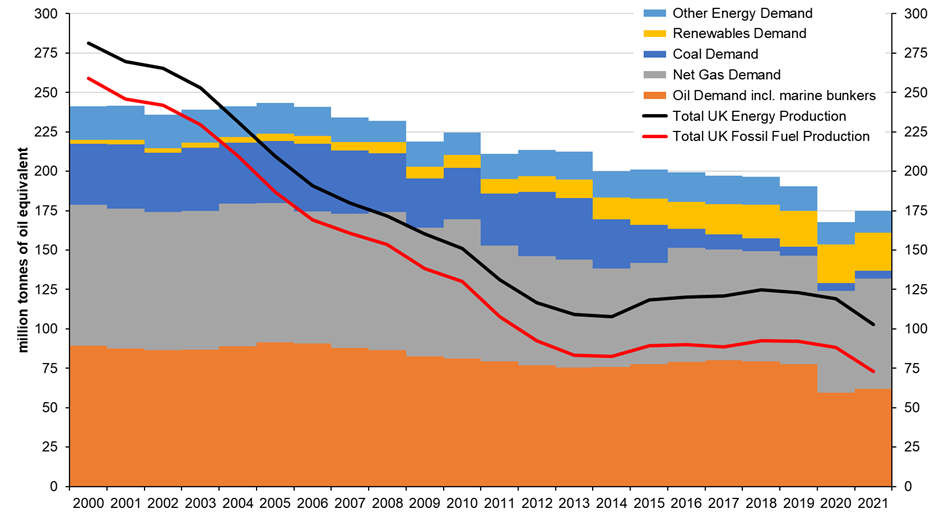

Figure 2. UK Energy Demand
Sources: UK Energy in Brief 2020 dataset (BEIS, September 2020), Aggregated Energy Balances showing proportion of Renewables (BEIS, September 2020) and DUKES 2020 (BEIS, July and October 2020)
The underlying data presented in Figure 2 above are available on request from the UK EITI Secretariat.

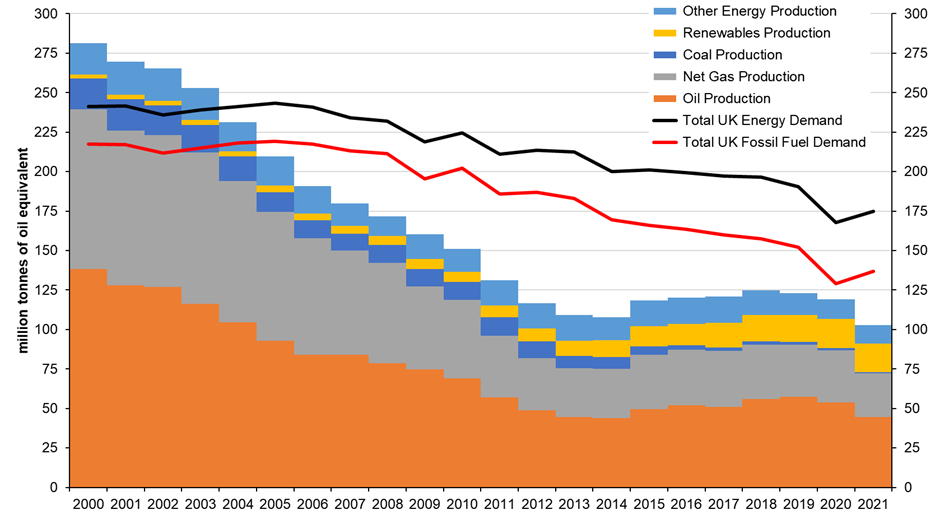

Figure 3. UK Energy Production
Sources: UK Energy in Brief 2020 dataset (BEIS, September 2020), Aggregated Energy Balances showing proportion of Renewables (BEIS, September 2020) and DUKES 2020 (BEIS, July and October 2020).
The underlying data presented in Figure 3 above are available on request from the UK EITI Secretariat.
- GVA is a measure of economic output – capturing the value of goods and services produced by a sector – and is often used to indicate a sector’s contribution to the economy. It is gross because it makes no allowance for depreciation of capital. It is approximately equal to gross operating surplus plus compensation for employees.
- Generally in this page, unlike in the ONS table and some other official sources, a terminological distinction is made between “oil and gas” and “[other] mining and quarrying”, the latter comprising the extraction of coal and of all non-hydrocarbon minerals. We have included mining support service activities in the total for the sector when calculating its contribution to GDP.
|BEIS||Department for Business, Energy & Industrial Strategy|
|billion||one thousand million or 109|
|DfE||Department for the Economy|
|DUKES||Digest of United Kingdom Energy Statistics|
|EITI||Extractive Industries Transparency Initiative|
|GDP||Gross Domestic Product|
|GVA||Gross Value Added|
|OBR||Office for Budget|
|OGA||Oil and Gas Authority|
|ONS||Office for National Statistics|
|SIC||Standard Industrial Classification|
|UKCS||UK Continental Shelf|
- GVA is a measure of economic output – capturing the value of goods and services produced by a sector – and is often used to indicate a sector’s contribution to the economy. It should be noted that the sectoral GVA data published here are very different from (and often much lower than) those previously published by the ONS. The revised estimates of GVA reflect methodological changes introduced for Blue Book 2019 (October 2019). Read more
- Generally in this page, unlike in the ONS table and some other official sources, a terminological distinction is made between “oil and gas” and “[other] mining and quarrying”, the latter comprising the extraction of coal and of all non-hydrocarbon minerals. We have included mining support service activities in the total for the sector when calculating its contribution to GDP. Read more
